Digi LoRaWAN Starter Kit
The Digi LoRaWAN™ starter kit provides a complete device, gateway and cloud IoT platform for developing end-to-end LoRaWAN solutions. The Digi LoRaWAN kit includes a multi-sensor device, a multi-channel gateway and X-ON™ cloud IoT free trial. The X-ON cloud demonstrates automated provisioning for devices and gateways.

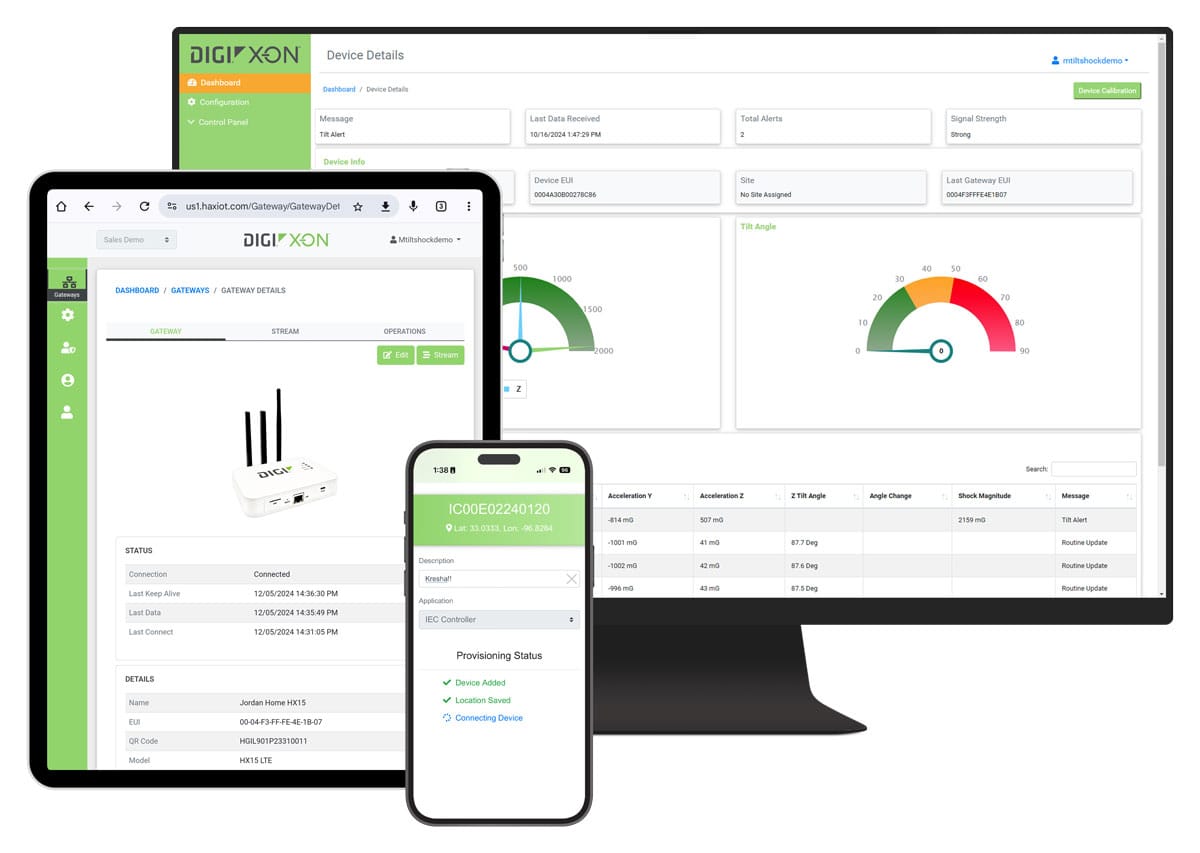

The Digi LoRaWAN starter kit provides a cloud application using the X-ON industrial IoT platform, a highly-scalable microservices platform for large-scale LoRaWAN solutions. Each gateway supports 1.5 million messages per day delivered to the X-ON cloud. The included HXG3000 gateway offers high receive sensitivity and up to 27 dBm transmit power to deliver long-range, non-line-of-sight, two-way communications over LoRaWAN. The starter kit provides LoRaWAN Class A and Class C for both low-power battery and always-on real-time cloud-to-device control applications, respectively.

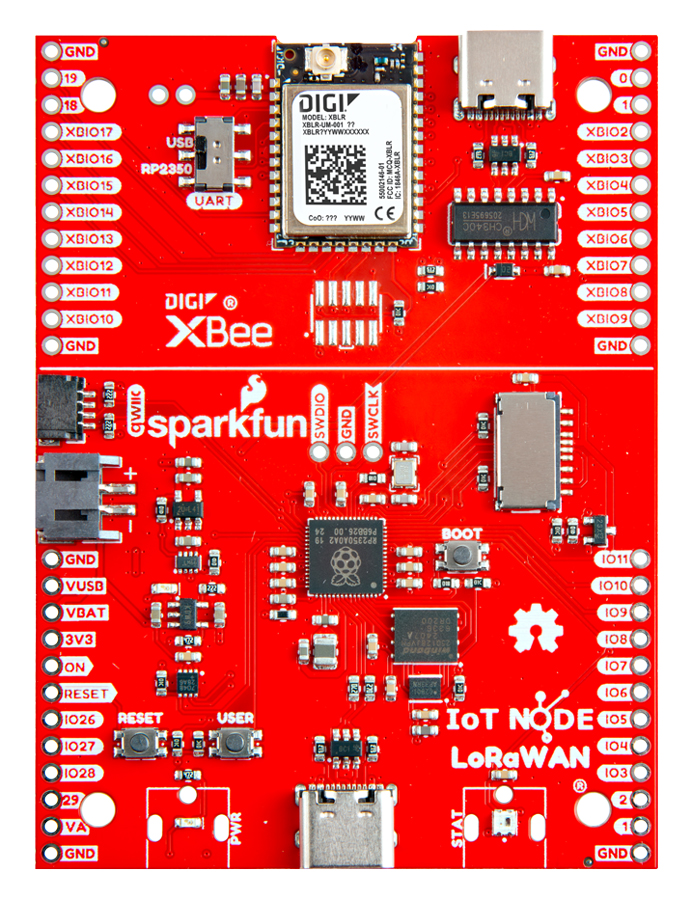

The Digi LoRaWAN Client Shield (expansion board) supports rapid prototyping and development of LoRaWAN sensors on ST® Nucleo and Arduino® platforms. The client shield features the LoRaWAN module, addressing long-range, low-power, wide-area networks (LPWAN), with stackable Arduino connectors, digital input switch, RGB LED, u.FL connector, antenna and temperature sensor. An embedded AT command language and simplified Mbed C++ Embedded API support rapid integration.
The module is certified with support for Class A, Class C and secure multicast. The client shield is compatible with select ST Nucleo and Arduino boards providing LoRaWAN client-side connectivity. The starter kit provides a complete framework for a fully functional LoRaWAN client device.
With the full suite of Digi services and solutions, OEMs can streamline development and time-to-market with integrated performance and security features.

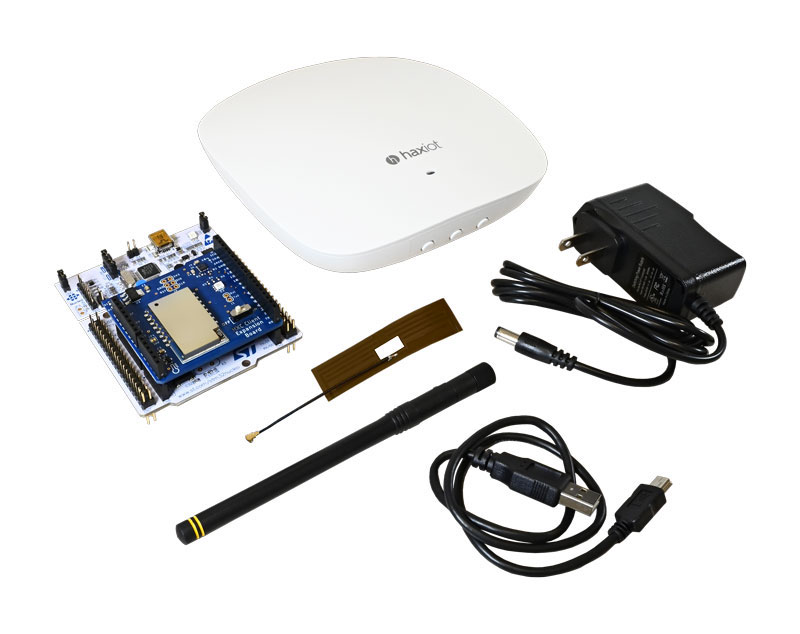

What's in the box?

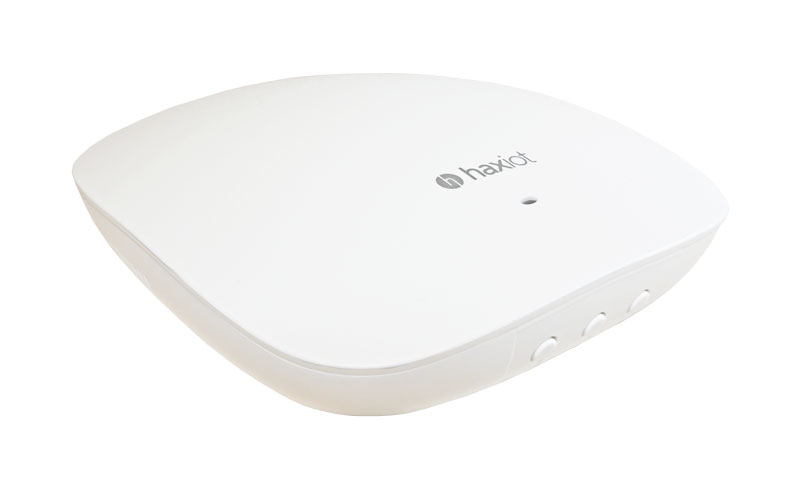

- Digi 8-channel LoRaWAN HXG3000 Ethernet gateway
- Client shield with LoRaWAN module, LED, digital input and temperature sensors
- Digi X-ON cloud platform 30-day free trial account with scan-and-go mobile provisioning
