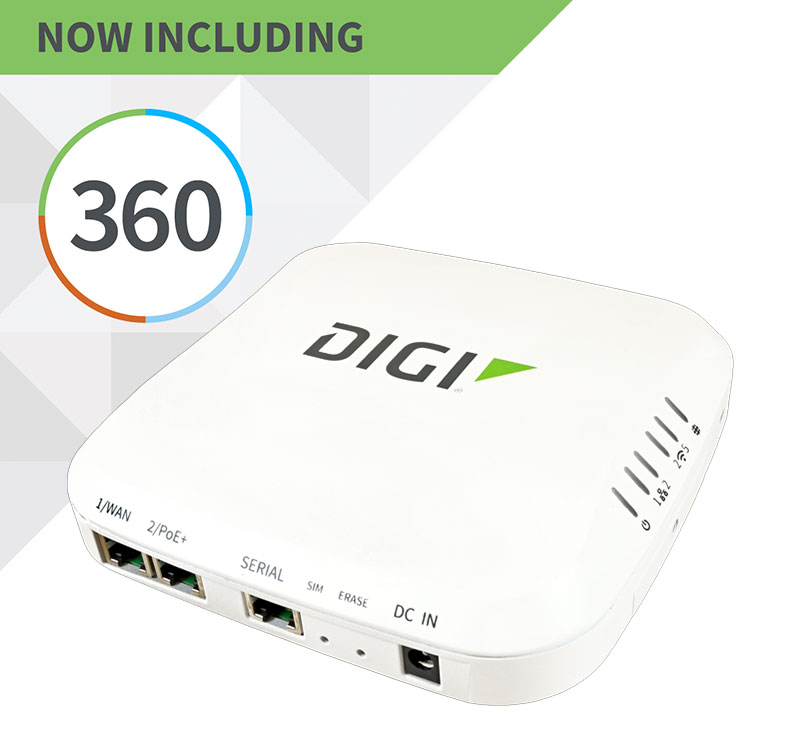

Digi EX50 5G Cellular Router

New

5G go-to enterprise solution for primary or backup wireless connectivity


  • Future-proof and ready for new use cases such as 5G network slicing, SD-WAN, 4K/8K cameras and AR/VR
  • High-speed 5G NR and 4G LTE-Advanced Pro Cat 20 dual connectivity cellular radio
  • Enterprise-grade Wi-Fi 6 and dual 2.5 Gigabit Ethernet
  • Extended operating temperature range for wider use-cases
  • Standards-based Power over Ethernet simplifies installation
  • Multiple mounting options and accessories
  • Serial port for remote, out-of-band management
  • Securely deploy, monitor and control devices with Digi Remote Manager®
  • Full-featured enterprise and industrial cellular routing platform
How to Buy

Business has forever changed with millions of employees working remotely. The Digi EX50 5G cellular router with 5G/4G dual connectivity provides your business with a fast, secure and resilient enterprise-grade network that changes the work-from-anywhere experience for good.

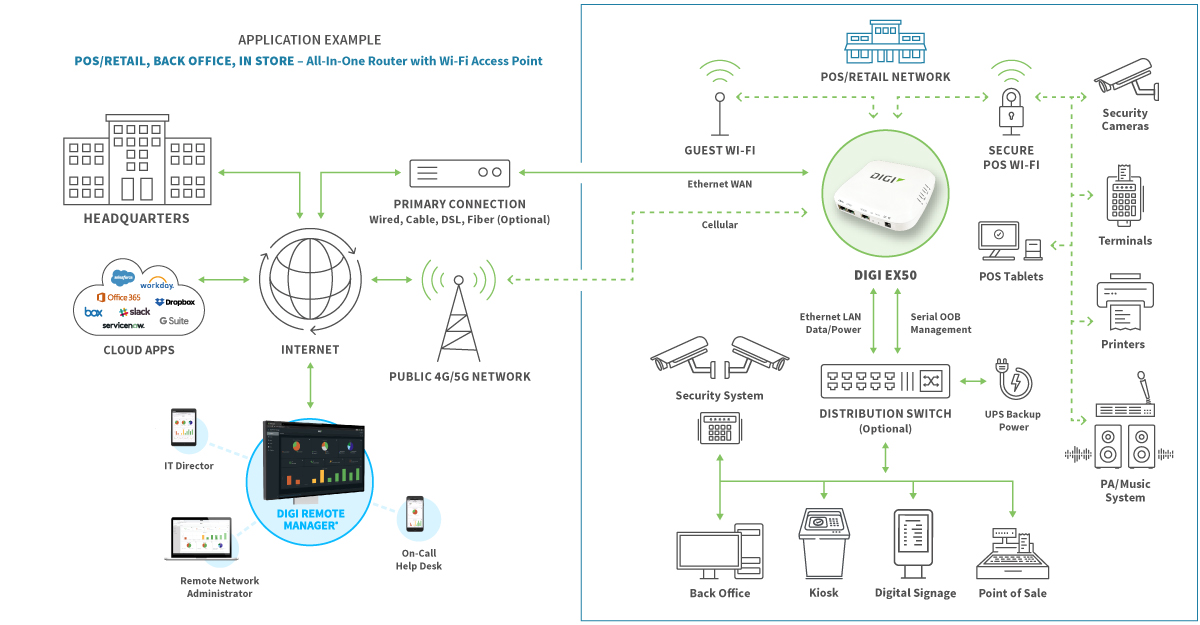

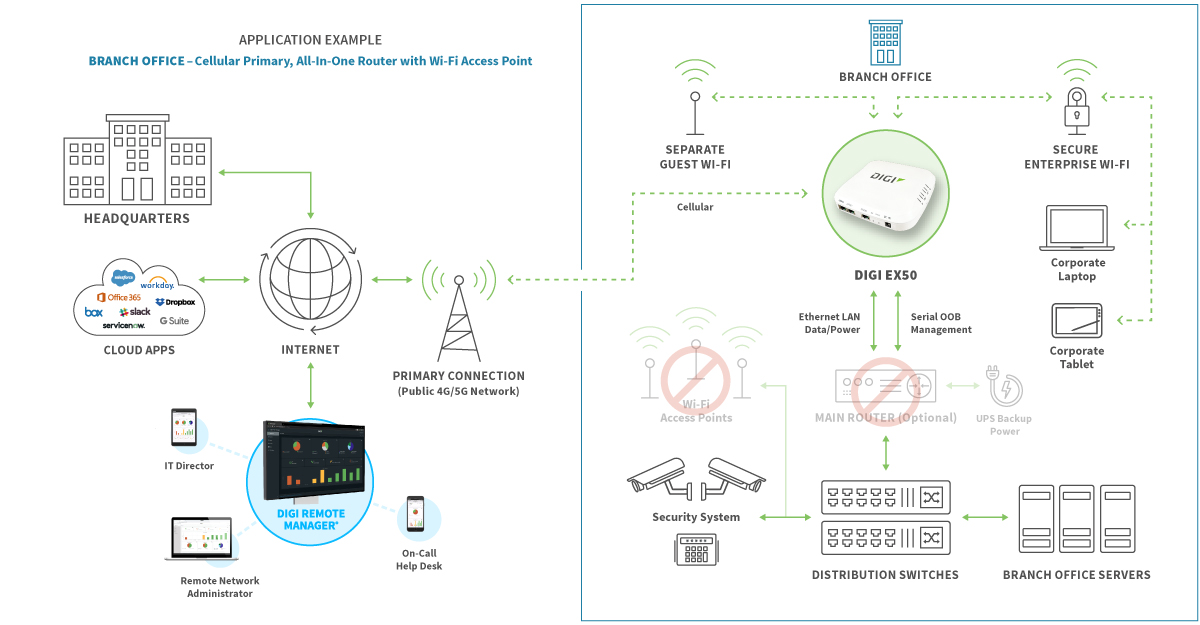

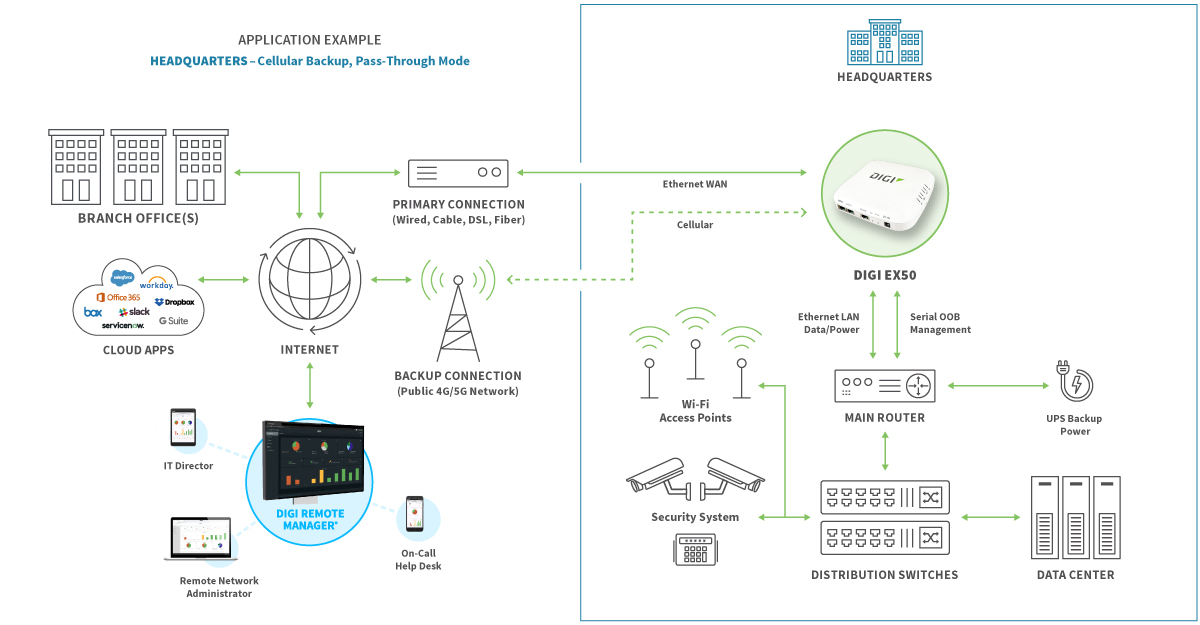

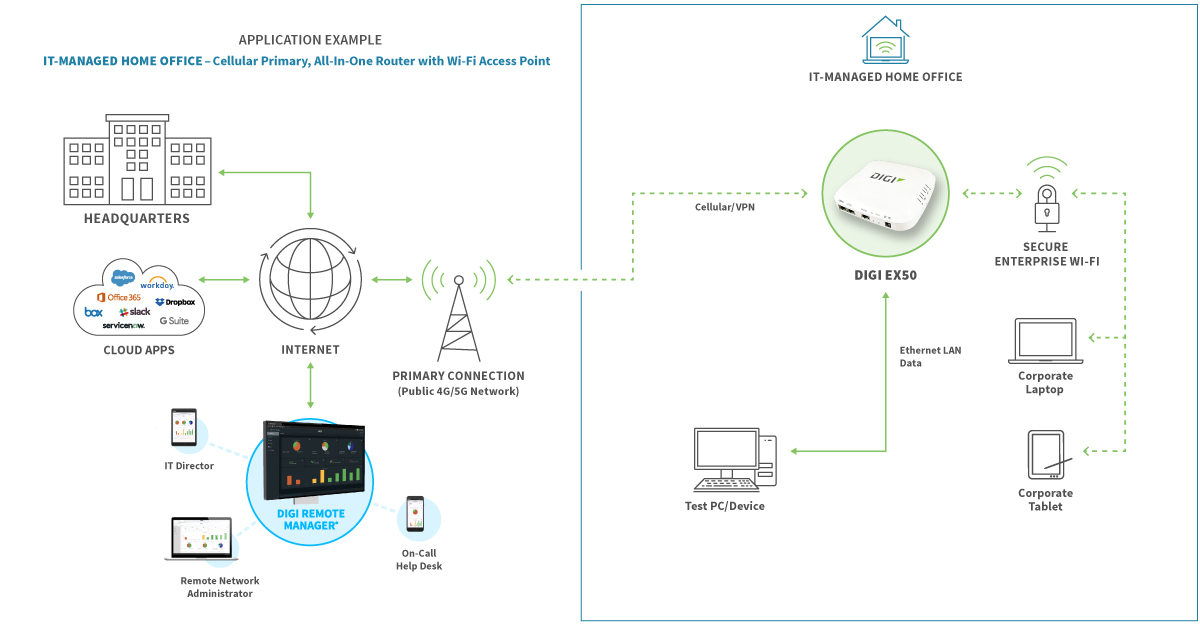

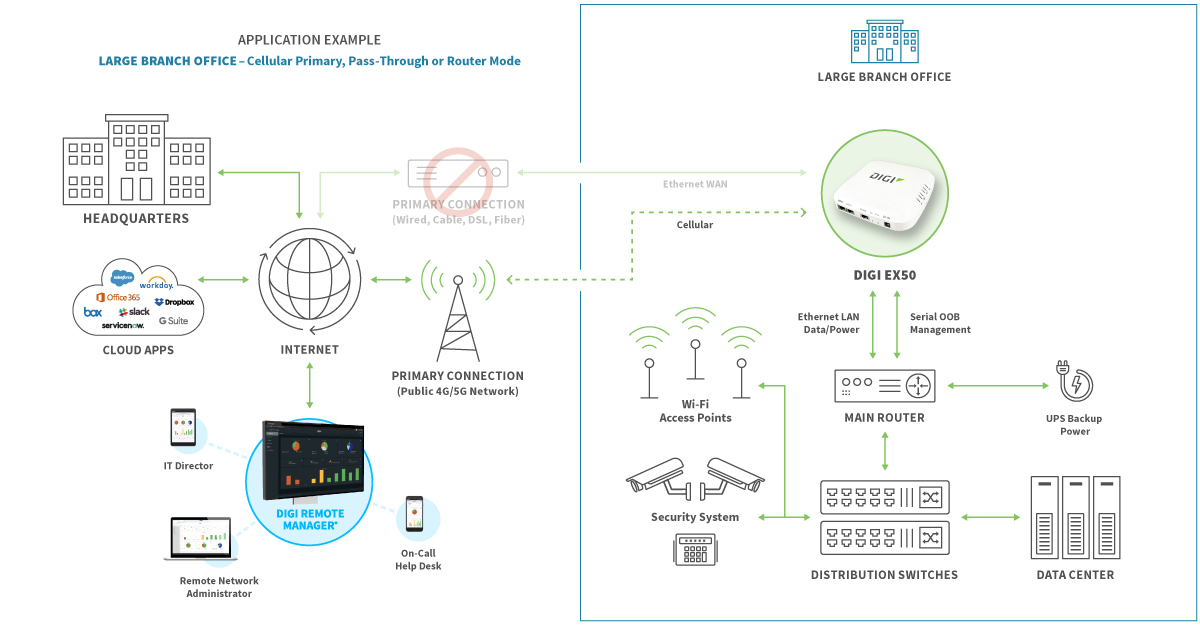

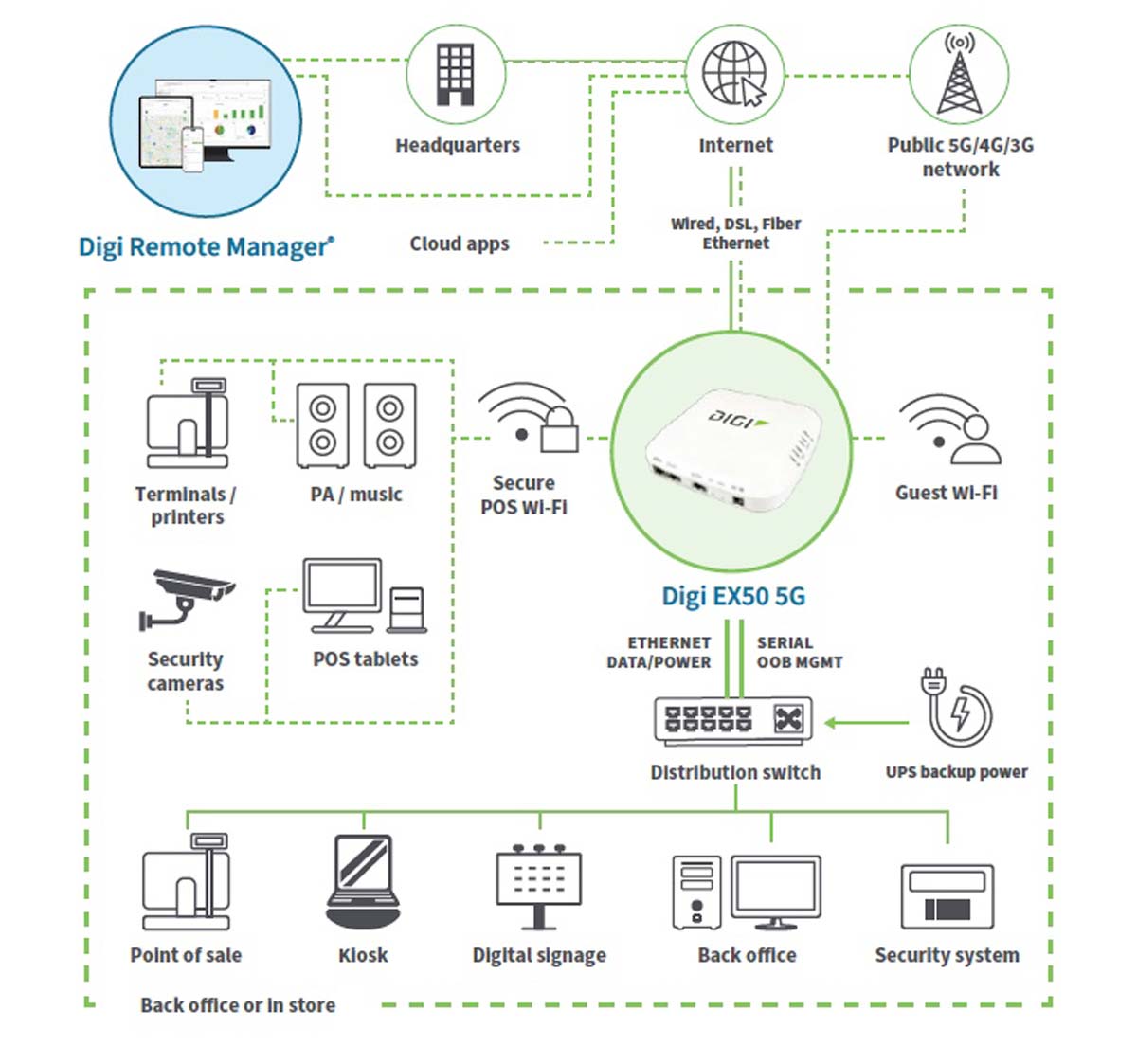

Digi EX50 is an ideal choice for your business as you adapt to the new normal. The small form factor of Digi EX50 makes it the 5G go-to enterprise solution where the work is happening: at the headquarters for backup connectivity, at the branch for cost-optimized primary connectivity, or at the IT-managed home office for secure, all-in-one connectivity with Wi-Fi.

Part of Digi enterprise solutions, this router comes with industry-leading software, including Digi Accelerated Linux (DAL OS), Digi TrustFence® security framework, and the Digi Remote Manager® configuration and management platform. These tools deliver security, reliability and system-wide management of your entire infrastructure.

Dual-SIM slots provide carrier flexibility and wireless failover, and with 4G LTE and 3G fallback, you're covered in areas where 5G is not yet deployed. The latest generation Wi-Fi 6 radios in the Digi EX50 router operate simultaneously for higher speed, capacity, quality of service and range than previous Wi-Fi products. Dual 2.5 Gigabit Ethernet ports break the Gigabit barrier and deliver 5G speeds for future-ready networks.

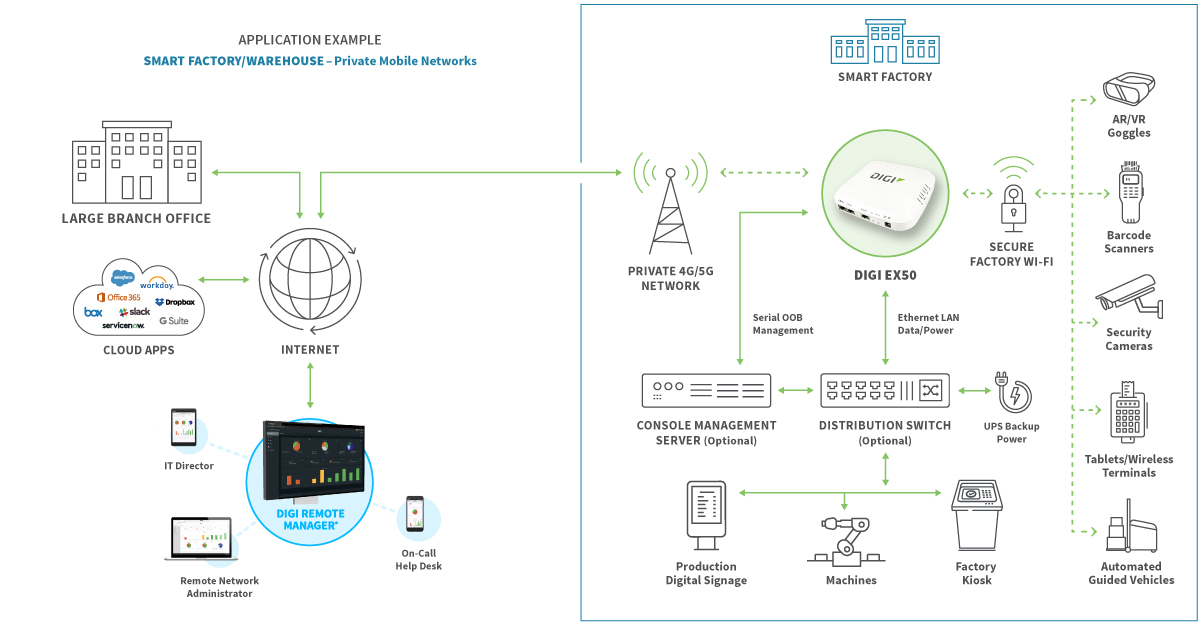

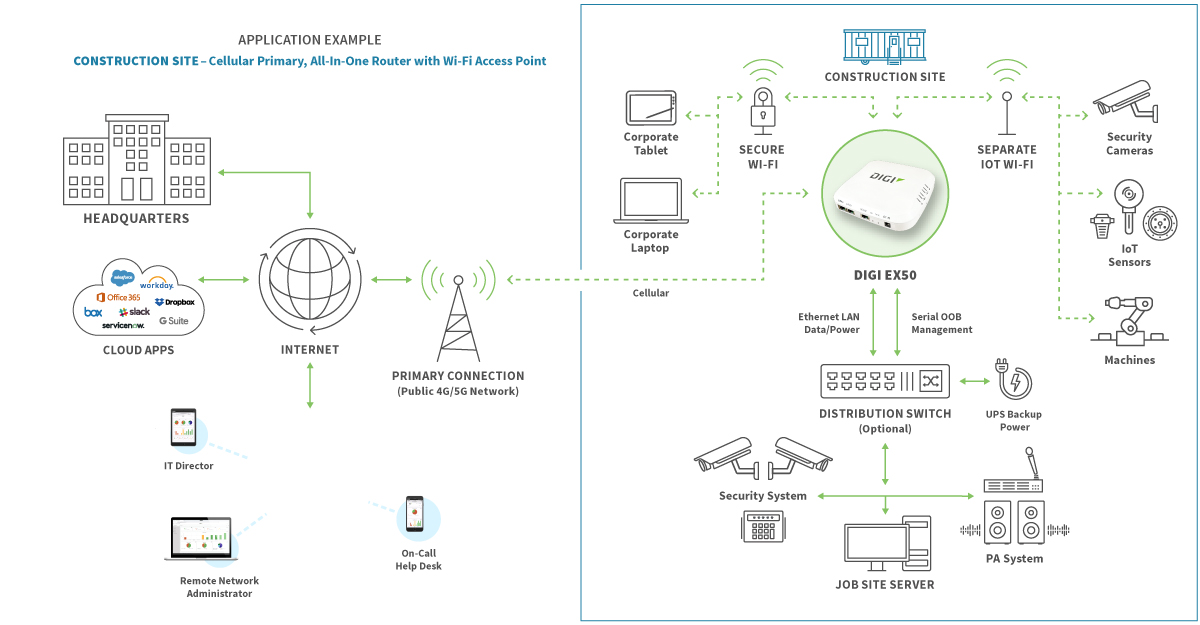

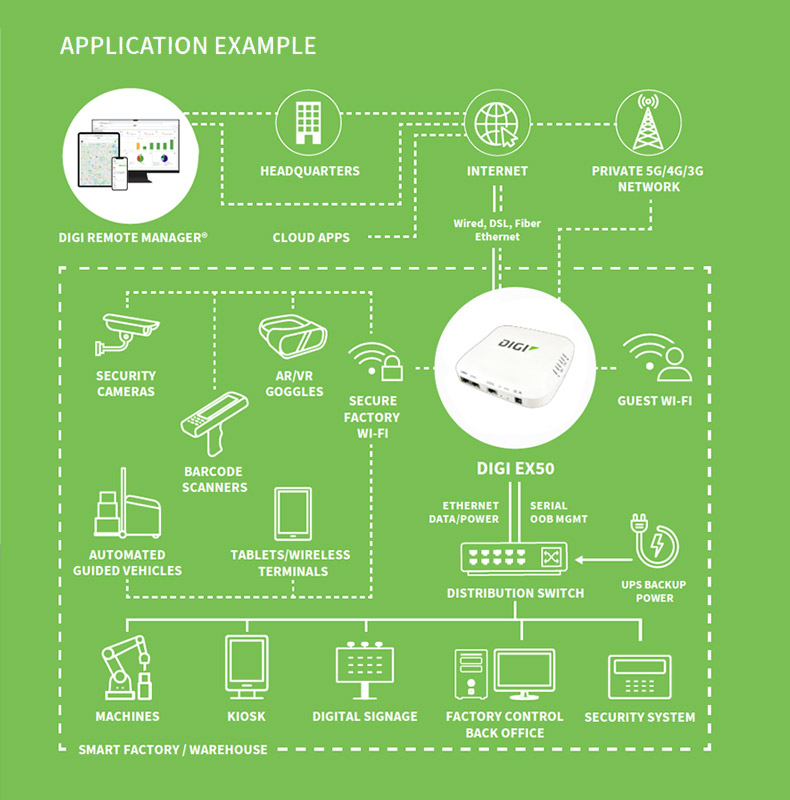

Digi EX50 supports indoor use-cases with an extended operating temperature range, such as smart factories, warehouses, construction sites or infrastructure sheds.

An available serial port with Cisco straight-through pinout enables secure out-of-band (OOB) management of other on-site equipment.

To simplify installation, Digi EX50 can be directly powered by an active PoE+ switch or a DC IN barrel connector as the primary or backup power source for redundancy.

Digi RM


Digi Remote Manager

Drop-in deployment with simple,
secure remote control

Best-in-class monitoring and management ensures you can scale your deployment to a fleet of any size. Digi Remote Manager® gives you a single, secure platform to access data and manage devices from anywhere. Simple, secure control keeps your deployments on track — edit configurations, update firmware, monitor, schedule and automate tasks — all from your desktop or tablet.

90 Day Trial Learn More


Go-To 5G Connectivity

for the New Age of Retail

Tap into 5G speed and capacity to support unique shopping environments and experiences. Meet Our 5G Solutions

Compare Enterprise Cellular Routers/Extenders

Compare Enterprise Cellular Routers/Extenders
5G Cellular Router
SKU: EX50-WXS6-GLB Digi EX50 - Global, 5G NR Sub-6 GHz with 4G/3G fallback
  • Wi-Fi 6 / 802.11ax, enterprise-grade, dual-band simultaneous 2x2 MIMO
  • Ethernet: dual 2.5 GbE RJ-45
  • Serial: RS-232 (RJ-45); Cisco straight-through pinout
  • Includes DC power supply, mounting hardware, Ethernet and serial cables
EX50-WXS6-GLB HOW TO BUY
Contact Us
Digi Remote Manager
Digi Remote Manager is the technology platform enabling and automating the deployment, monitoring and management of thousands of devices from a single point of command. Compare Digi’s multiple offerings and varying subscription terms to meet your business needs.   GET STARTED
SPECIFICATIONS Digi EX50
CELLULAR CONNECTIVITY
5G NR Bands: n1, n2, n3, n5, n28, n41, n66, n71, n78, n79; C-Band
4G LTE-ADVANCED PRO Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71; CBRS, LAA
3G HSPA+ Bands: B1, B2, B3, B4, B5, B6, B8, B9, B19
ANTENNA CONNECTORS (4) 50 Ω SMA (center pin: female)
SIM SLOTS (2) Mini-SIM (2FF); software selectable, hardware switchable; SIM slot cover plate
SOFTWARE AND MANAGEMENT
SOFTWARE Digi Accelerated Linux (DAL OS); secure, reliable, intelligent, customizable
REMOTE MANAGEMENT Digi Remote Manager®; security, management, updates, alerts, scheduling and intelligence
LOCAL MANAGEMENT Web Interface (HTTPS); Command Line Interface (SSH, serial port)
PERFORMANCE
ETHERNET THROUGHPUT 2.0 Gbps
CELLULAR THROUGHPUT 1.0 Gbps
IPSEC VPN THROUGHPUT 500 Mbps
VPN TUNNELS 10 tunnels
CLIENT COUNT 50 clients (typical)
PROCESSOR
APPLICATION PROCESSOR ARM® Cortex®-A53, 1.8 GHz, quad-core, 64-bit
MEMORY 512 MB RAM, 512 MB flash
ETHERNET
PORTS (2) RJ-45; 10/100/1000/2500 Mbps (auto-sensing)
WI-FI
RADIOS Wi-Fi 6 / 802.11ax, enterprise-grade, dual-band simultaneous, 2x2 MIMO; 2.4 GHz: 802.11b/g/n/ax; 2.4 GHz and 5 GHz: 802.11a/n/ac/ax
ANTENNAS Integrated 2x2 MIMO, 2.4 with 8 dBi gain, 5 GHz with 5 dBi gain
SECURITY Open, Enhanced Open, WPA, WPA2, WPA3; Personal, Enterprise
MODES (4) Wi-Fi access points; (2) Wi-Fi clients; (50) Wi-Fi users (typical)
SERIAL
PORTS (1) RS-232 (RJ-45); Cisco straight-through pinout; for out-of-band management of network appliances and servers
PHYSICAL
DIMENSIONS (L x W x H) 158 mm x 158 mm x 35 mm (6.2 in x 6.2 in x 1.4 in)
WEIGHT 600 g (21 oz)
STATUS LEDs (14) total for easy visual troubleshooting; Power, LAN, WAN, Wi-Fi 2.4/5, Online, Cellular Signal, Cellular Service, SIM 1/2
ENCLOSURE Hybrid (die-cast aluminum + ABS plastic); Kensington Security Slot
POWER REQUIREMENTS
DC BARREL INPUT 19 VDC / 2.5 A barrel connector, 2.5 mm pin, center-positive
POWER OVER ETHERNET Standards-based, IEEE 802.3at, PoE+ (25.5 W)
POWER CONSUMPTION 8 W (idle), 15 W (typical), 25 W (maximum)
ENVIRONMENTAL
OPERATING TEMPERATURE 0° C to 40° C (32° F to 104° F) with included commercial-rated power supply; -30° C to 60° C (-22° F to 140° F) with Power over Ethernet or industrial-rated power supply
RELATIVE HUMIDITY 5% to 95% (non-condensing)
APPROVALS
CELLULAR Visit www.digi.com/resources/certifications for latest certifications
EMISSIONS / IMMUNITY CE; RED; FCC Part 15 Subpart B; CAN ICES-003
SAFETY IEC62368-1, CB, EN62311
WARRANTY
PRODUCT WARRANTY 3-year*
*Standard 3-year warranty upgradeable to 5 years with purchase of a Digi Remote Manager Premier 5-year subscription applicable to the product purchased only at the time of product purchase and with product registration at that time in Digi Remote Manager.
